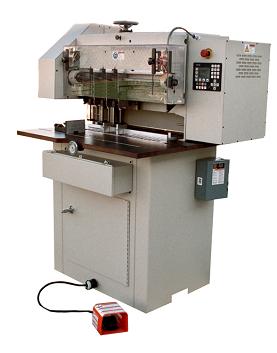

DL Model M (Miller) Paper Drilling Machine



Our Model M Drill combines our industry leading 3" lift capacity with a host of standard features not found on other paper drill machines, such as fixed table construction, micrometer side gauge, easy operatior adjustment of drill heads and electronic display.  This machine also comes standard with see-through interlock guards, emergency stop button and a pneumatic braking system.

Key Features:

• Extra-Wide 26" Drilling Width
• New easy-to-operate computer touch screen
• Heavy Duty Design
• Full 3" lift height
• Variable drill stroke speeds
• 9" back gauge depth
• 3 H.P. drive shaft motor
• Easy setup
• Gear box transmission, NO hydraulics
• Optional Silicone Spray Attachment


Specifications:

Accepts up to 10 heads
Micrometer side guide
Speeds (headrail C.P.M.) Max. 20 Min.15
Speeds (spindle R.P.M.) Max. 3800 Min. 1800
Table Height 37"
Overall Height 65"
Minimum distance between centers
          Right and left heads - 1-1/4"
          2 right or 2 left - 1-1/2"
Maximum center to center  -  26"
Maximum lift height  -  3"
Back gauge depth  -  9"
Motors - 208/220/440 60 Hz - 3 phase 30 amp
Headrail Motor  -  1-1/2 H.P.
Spindle Motor  -  3 H.P.
Compress air required (for Brakes)  -  50-70 PSI
Drill Sizes  -  1/8 " to 1/2"

(Call for Current Pricing)
