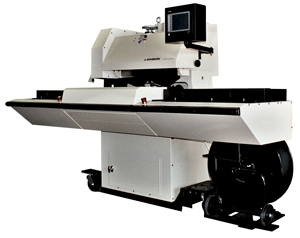

The "Lawson" Classic in-line Paper drill has been the industry's standard for over 30 years. Almost every large shop in America has one. It has been designed for heavy-duty 24/7 operation with such features as double drilling station of 3" stacks. It is not uncommon for a shop to drill between 10,000 and 20,000 perfect bound books an hour. Standard features:
Heavy-duty construction for 24/7 operation Full 3" lift capacity Fully automatic in-feed and delivery Single and double station drilling Variable drilling width and drill stroke speeds Vacuum chip disposal unit for paper chip removal Variable spindle speed control Slow-down, fast-up head rail motion Includes 6 heads Computer touch-screen for easy operation & diagnostics Gear Box Transmission, NOT Hydraulics Quick Set-up
Specifications:
Accepts up to 16 heads
Head rail Speeds (CPM) Max. 16, Min. 12
Spindle Speeds (RPM) Max. 3,200, Min. 1200
Paper Sheet Size Max. 12" x 12" Min. 3" x 5"
Lift Height: Max. 3"
Floor Area: 40” x 110”
Overall Height: 65”
Table top Height: 37”
Shipping: 3,500 lbs 64"L x 126"W x 72"H Motors: 220-240v 60 hz 3 phase 30 amp Spindle motor 5 H.P. Head rail motor 1-1/2 H.P. Drill sizes: 1/8" to 1/2" Compressed air required: 70-90 psi
Motors: 220-240v 60 hz 3 phase 30 amp
Spindle motor 5 H.P.
Head rail motor 1-1/2 H.P.
Drill sizes: 1/8" to 1/2"
Compressed air required: 70-90 psi
Positioning:
Minimum change-over adjustment
Calibrated rule for positioning heads
Accommodates standard and high lift drills
Fast, easy removal, positioning or replacement heads
Straight through synchronized conveyors
Right Hand or Left Hand Feed
Safety features include:
Full interlock safety guarding
Mid-cycle auto stop
Auto in-feed & delivery, no operator exposure
Fully enclosed and guarded
Air piston conveyor moves work through and to work station
Head rail equipped Pneumatic brake
Drilling:
Variable spindle speed control
Slow-down, fast-up head rail motion
Grip type spindle w/ hex nut in drill head
Vertical spindle adjustment while running
Finished lifts ejected onto delivery conveyor
Two (2) jogging stations
Optional Hollow drill air cooling silicone spray system
Automatic indexing cutting band
PLC programmable logic controller
Optional Equipment:
Multiple Spindle heads
Portable dolly
Extra drill heads
Air cooling silicone spray unit
In-feed & delivery systems with special hoppers, stackers, conveyors, counters, heavy duty motors
9/16" drilling capacity
paint can drilling for 3/4" to 1-1/2" diameter
Maintenance:
Simplified design
Heavy duty construction
Minimum lubrication requirements
Lawson hand drill sharpener
Swing away guards for accessibility
