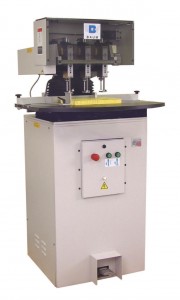

Baum D3 HD 3-Head Stationary Table Drill



Easily Adjustable 3-Head Drill


5-drilling head capacity
Stationary table
Positive gear driven heads
Hydraulic operation
Head alignment without use of tools
Exclusive medical forms drilling capability
Safety interlock guards
Drill bit installation and removal without use of tools

The BAUM D3 HD 3-Head Stationary Drill can be easily adjusted; no tools are needed for positioning the heads. Set-up time is greatly reduced since the heads can be moved into position simply by loosening a locking knob by hand, placing the head where needed, and re-tightening. Drill bits can also be removed and reinserted without tools.

Baum builds for safety. The safety interlock feature protects the operator by disabling all motors when the guard is lifted. The spindle motor remains inoperative until the guard is lowered. If the safety motor overload breakers interrupt the operation of either the spindle or the hydraulic motors, there is no need to open the electrical box to push a reset switch. They will automatically reset themselves. An overload indicator light is provided on the front control panel.


1-1/4 in” (3.18CM) center to center minimum distance between holes
Capable of drilled hole sizes using bits from 1/8 to ½ in (3.1 to 12.7cm) diameter
Full 2 inch (5.1cm) high lift capacity
Electrics: 220/1/60 or 220/1/50 or 220/3/60 or 380-415/3/50
Metric/inch scales

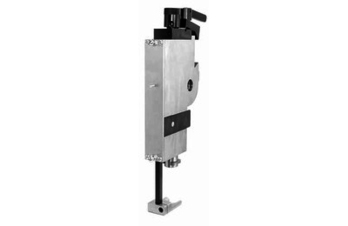

Need an Extra Drill Head?


Don't forget to order yours!
