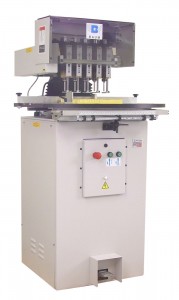

Baum D5 MT 5-Head Moveable Table Drill



5-drilling head capacity
Moveable table traverses side to side
Positive gear driven heads
Ideal for drilling special forms and planners etc.
Hydraulic operation
Head alignment without use of tools
Exclusive medical forms drilling capability
Safety interlock guards
Drill bit installation and removal without use of tools

The BAUM D5 MT Moveable Table Drill enables close, center-to-center hole drilling and repeatable multiple patterns by simply traversing the table from right to left or left to right and back again. A series of adjustable stops enable special hole patterns to be repeated. The traversing of the table eliminates the need to move the paper by hand to the next drilling location. This increases the quality of the drilled product since paper is not being disrupted during multiple passes of drilling.


1-1/4 in” (3.18CM) center to center minimum distance between holes in fixed position
3/8 in (10mm) center to center minimum distance between holes with moveable table
Capable of drilled hole sizes using bits from 1/8 to ½ in (3.1 to 12.7cm) diameter
Full 2 inch (5.1cm) high lift capacity
Electrics: 220/3/60 or 380-415/3/50
Metric/inch scales
